Black Polyimide Tapes - 1 Mil

Description

RoHS & REACH Compliant

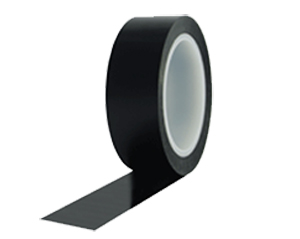

Black Polyimide Tapes by Bertech are made of 1 mil thick polyimide film with 1.5 mil thick silicone adhesive. They offer excellent thermal resistance and electrical insulating properties. These black polyimide tapes are used for protection of components in wave soldering, anodizing, powder coating, and 3D printing. They are also used in applications where high temperature masking is required. They are packaged on a 3" core and are 36 yards long.


Custom sizes are available upon request.

Application Ideas

  • 3D Printing
  • Aerospace
  • Automotive
  • Electronic Assembly
  • Solar Panel Assembly
  • Data Centers
  • Life Sciences
  • Wave Soldering.
Part Number PPTB series
Color Black
Total Thickness 2.5 mil
Material Type Polyimide
Adhesive Type Silicone
Adhesion to Steel 25 oz./in.
Tensile Strength 30 lbs./in.
Operating Temperature -100°F to 500°F
Dielectric Strength 6,500 Volts
UNSPSC Code 31201503
Technical Datasheet
