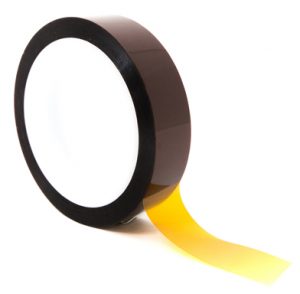

Kapton Tapes - 2 Mil - UL Recognized

Description

Made in USA, RoHS & REACH Compliant

Kapton Tapes are UL Recognized and made from 2 Mil thick Kapton® HN film with silicone adhesive. They have been used in applications at temperatures as low as -73°C (-99°F) and as high as 260°C (500°F). DuPont™ Kapton® Polyimide Films have set the industry standard for over 45 years in high performance, reliability and durability, with a unique combination of electrical, thermal, chemical and mechanical properties that withstand extreme temperatures, vibration, and other demanding environments. Kapton® Tapes have a high dielectric strength. The silicon adhesive protection leaves no residue. Also available in 1 mil and 5 mil thickness.


Custom sizes are available upon request.

Application Ideas

  • 3D Printing
  • Aerospace Assembly
  • Automotive Facilities
  • Electronic Assembly
  • Fiber Optics Manufacturing
  • Data Centers
  • Life Sciences
  • Solar Panels
Part Number KPT2 series
Color Amber
Film Thickness 2.0 mil
Adhesive Thickness 1.5 mil
Total Thickness 3.5 mil
Flame Retardant Pass
Adhesion to Steel 25 oz./in.
Tensile Strength 50 lbs./in.
Elongation 45%
Dielectric Strength 12,000 Volts
UNSPSC Code 31201503
UL Standard UL-510A

DuPont™ and Kapton® are trademarks or registered trademarks of E.I. du Pont de Nemours and Company.


Technical Datasheet
